Stainless Steel Automatic Drinker For Pig

As the professional manufacture, we would like to provide you Stainless Steel Automatic Drinker for Pig. And we will offer you the best after-sale service and timely delivery. Automatic drinking water machine is the necessary equipment to realize the mechanization of animal husbandry, because of its use of different places, product specifications and models of water is not the same.

Cason Stainless steel Automatic Drinker products are mainly divided into Bite Ball Nipple Drinker, Pig Push Nipple Drinker and Pig Bite Nipple Drinker. Customers can choose different stages of the drinking fountain according to the size of the pig and the amount of water they drink, The valve body and spool of the Pig Bite Nipple Drinker are made of brass or stainless steel, the spring and filter screen are made of stainless steel, and the plug cover is made of engineering plastics, its good sealing, water flow pressure drop, flow rate is low, in line with the requirements of pigs drinking water, suckling pigs, conservation, pigs, pigs can choose to use.

The biggest characteristic of the Pig Push Nipple Drinker is the simple structure, which is composed of the shell, the ejector rod and the steel ball. When the pig draws water, the ejector rod and the steel ball are pushed up, and the water flows out from the steel ball, the ejector rod and the shell gap to the living oral cavity. After the pig loose mouth, by water pressure and the gravity of the steel ball and ejector rod, the steel ball and ejector rod fall and the shell close connection, the water stops flowing out, this kind of magazine by the strong carrying capacity to the silt and so on, but the sealing is poor, it can make it difficult for the pigs to drink and waste water to wet the Pigpen.

The Bite Ball Nipple Drinker has a steel ball on it, and only by pressing the steel ball, the steel ball will trigger the pin to move, never triggering the water, and the nipple type duck-bill type difference is that, the duck's beak and the nipple touch (touch, press) to get out of the water, while the marbles need the pig's mouth to hold them, thus touching the steel ball to get out of the water. Both at home and abroad prefer this type, because the water-saving type exceeds other types, pigs are particularly fond of playing with water, playing with these devices, so the water-saving steel ball better, more convenient to use, more suitable for pig farm use.

Product Classification and specifications
Cason has many kinds of drinking fountains. If you need more, please contact our company.

TypeProduct nameDescription of goodsProduct photos
  ZY-6111/2’’Bite Ball Nipple DrinkerLength: 79mmSize: Φ21x79Materials: SUS201/304Weight: 114gApplicable to breeding pigs, fattening pigs
ZY-6133/4’’Bite Ball Nipple DrinkerLength: 79mmSize: S27x33; Φ20.3x56Materials: SUS201/304Weight: 143gFor Big Pigs
ZY-6161/2’’Bite Ball Nipple DrinkerLength: 105mmSize: Φ28x105Materials: SUS201/304Weight: 240gFor Big Pigs
ZY-6181/2’’Bite Ball Nipple Drinker(side hole-water coming out below)Length: 82mmSize: S22x32; Φ21x60Materials: SUS201/304Weight: 130gApplicable to breeding pigs, fattening pigs
ZY-80881/2’’Pig Push Nipple Drinker(thin rod)Length: 58mmSize: S22x46Materials: SUS201/304Weight: 79gDrinking Bowl type nozzle
ZY-8091/2’’Pig Push Nipple DrinkerLength: 64mmSize: Φ22x35Materials: SUS201/304Weight: 70gdrinking bowl is spouted
ZY-8061/2’’Pig Push Nipple Drinker(slanting)Length: 49mmSize: S22x37Materials: SUS201/304Weight: 90gDrinking Bowl type nozzle
ZY-7111/2’’Pig Push Nipple DrinkerLength: 62mmSize: S22x36Materials: SUS201/304Weight: 68.5gdrinking bowl is spouted
ZY-8011/2’’Pig Bite Nipple Drinker(foursquare)Length: 64mmSize: Φ22x64; Square CutMaterials: SUS201/304Weight: 87gApplicable to breeding pigs, fattening pigs
ZY-8031/2’’Pig Bite Nipple DrinkerLength: 55mmSize: S22x55Materials: SUS201/304Weight: 59gApplicable to suckling pigs,breeding pigs
ZY-8021/2’’Pig Bite Nipple Drinker(both sides)Length: 64mmSize: Φ22x64Materials: SUS201/304Weight: 87gApplicable to breeding pigs, fattening pigs
ZY-80111/2’’Pig Bite Nipple Drinker(Body)Length: 64mmSize: Φ21x64; Square CutMaterials: SUS201/304Weight: 87gApplicable to breeding pigs, fattening pigs

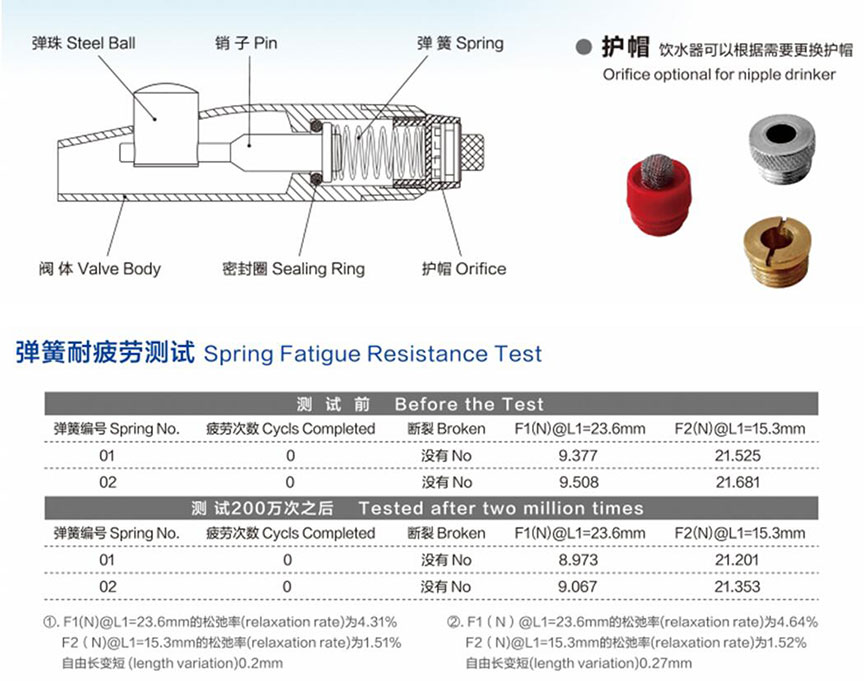

Construction and test data of stainless steel drinking water dispenser for pigs
Cason's water dispenser is made of thick stainless steel, wear-resisting and bite-resistant, and has the features of large water output.


Ball bite nipple drinker feature.
Automatic flow control, 100-600 kPa, 1-6 bar, 15-90 psi
High pressure by pressure pump, 200-400 kPa, 2-4 bar, 30-60 psi
Low pressure by gravity tank, 20-50 kPa, 0.2-0.5 bar, 3-7 psi
All animals get the same amount of water
Adjusts automatically to the water pressure
Less water spillage
Secured growth
Same water flow
reduces water wastage and spillage. To activate the valve, the animals must take the drinker completely into their mouth, also reducing water wastage through playing.
ALL STAINLESS STEEL!

Nipple Drinker Series
Technical Standard
Material: Stainless Steel 304,201, Brass
Automatic Flow Control: 100-600 kPa, 1-6 bar, 15-90 psi
High Pressure by Pressure Pump: 200-400 kPa, 2-4 bar, 30-60 psi
Low Pressure by Gravity Tank: 20-50 kPa, 0.2-0.5 bar, 3-7 psi
Diameter Size: Length, Height, Width, Thickness
Thread size:1/2,3/4,3/8

Product Qualification

Deliver, Shipping And Serving
Time of delivery: Within 20 days after down payment received.
The shipping way: By sea
We welcome your inquiry.
